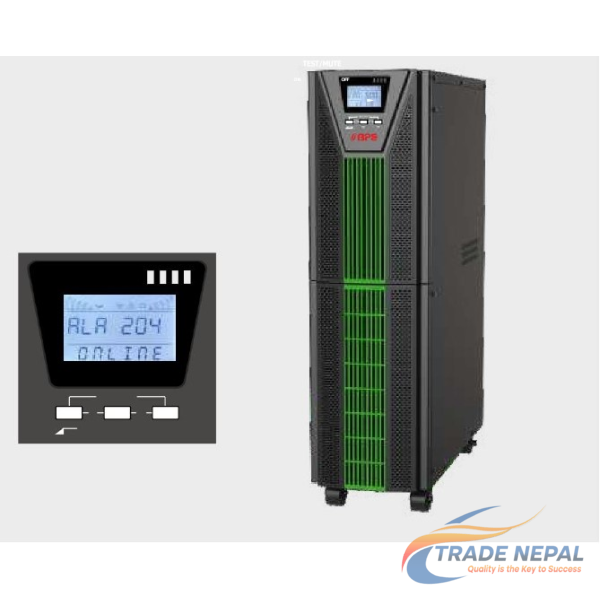

MFP 1105816 (Internal) 5kVA / 192VDC Isolation Transformer 16 Battery Online UPS

MFP 1105816 (Internal) 5kVA / 192VDC Isolation Transformer 16 Battery Online UPS – BPE

Product Overview

The MFP 1105816 (Internal) 5kVA Online UPS from BPE is a high-performance power backup solution designed for critical applications in Nepal. Built with true online double conversion technology, this UPS ensures uninterrupted and clean power supply for sensitive equipment like servers, medical devices, offices, banks, and industrial systems.

Equipped with 192V DC battery system (16 batteries) and an isolation transformer (TRF), it provides superior protection against voltage fluctuations, electrical noise, and power disturbances.

Key Features

• True Online Double Conversion UPS
• Built-in Isolation Transformer (TRF) for enhanced safety
• 5kVA / 5kW capacity with high power factor
• Internal battery design with 16 batteries (192VDC system)
• Zero transfer time for uninterrupted operation
• Pure sine wave output for sensitive loads
• Wide input voltage range suitable for Nepal power conditions
• Intelligent LCD display & microprocessor control
• Generator compatible
• Advanced protection: overload, short circuit, battery low, over-temperature

Technical Specifications

Capacity

• Rated Capacity: 5kVA / 5kW
• Topology: True Online Double Conversion

Input

• Input Voltage: 220V / 230V / 240V AC
• Voltage Range: 110V – 300V AC (load dependent)
• Frequency Range: 50/60 Hz ±10%
• Input Power Factor: ≥0.99

Output

• Output Voltage: 220V / 230V / 240V AC
• Output Waveform: Pure Sine Wave
• Voltage Regulation: ±1%
• Output Power Factor: Up to 1.0
• THD: ≤3%
• Transfer Time: Zero (0 ms)
• Crest Factor: 3:1

Battery

• Battery Voltage: 192V DC (16 batteries)
• Battery Type: SMF/VRLA (internal)
• Recharge Time: 4–5 hours to 90% capacity
• Charging Current: Approx. 6A

Efficiency

• Up to 94% in double conversion mode
• Up to 99% in ECO mode

System Features

• Isolation Transformer for electrical isolation
• LCD + LED display monitoring system
• Static bypass & maintenance bypass
• Parallel operation support (optional)
• Communication: RS232 / SNMP / USB (optional)
• Generator compatible

Protection

• Overload protection
• Short circuit protection
• Battery over/under voltage protection
• Over temperature protection
• Input/output fault protection

Applications

• IT & Server Rooms
• Banking & Financial Institutions
• Hospitals & Medical Equipment
• Industrial Automation
• Telecom Systems
• Offices & Commercial Buildings

Why Choose This UPS in Nepal?

The MFP 1105816 5kVA Online UPS is ideal for Nepal’s unstable power conditions. With its wide voltage range, isolation transformer, and robust battery backup, it ensures continuous operation and protects expensive equipment from damage.
