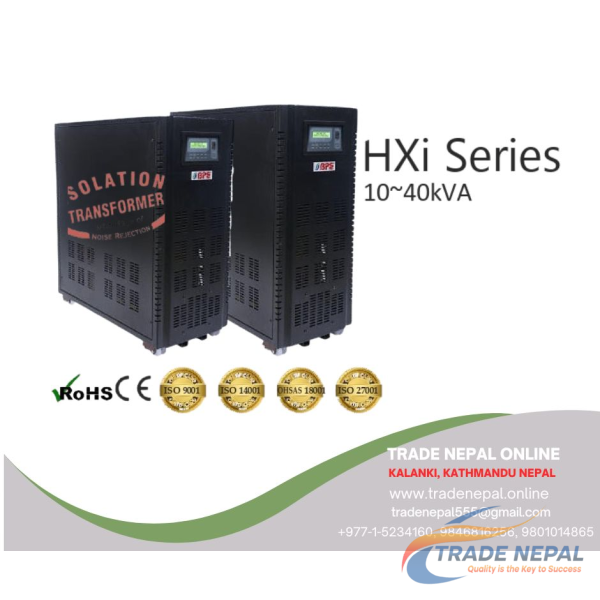

10KVA Online UPS HXI3110L16 (192V) 3:1 phase Isolation Transformer External Battery

Product Description

The 10KVA Online UPS (HXI3110L16)is a high-performance true online double conversion UPS system designed to deliver clean, stable, and uninterrupted power for critical applications. Equipped with an inbuilt isolation transformer, this UPS ensures superior protection against electrical noise, voltage fluctuations, and power disturbances.

With a 192V DC external battery system, it provides flexible backup time options, making it ideal for offices, hospitals, IT equipment, banks, and industrial use in Nepal.

Key Features

• True Online Double Conversion Technology
• Inbuilt Isolation Transformer for complete protection
• Wide Input Voltage Range (285V–470V)
• Pure Sine Wave Output for sensitive equipment
• Advanced Battery Management System
• Cold Start Function (start without mains power)
• High Efficiency up to 94%
• User-Friendly LCD Display
• IGBT-based Rectifier & Charger
• Generator Compatible
• Optional SNMP / Remote Monitoring

Technical Specifications

Capacity

• 10KVA

Input

• Voltage Range: 285V – 470V (3 Phase, 4 Wire)
• Frequency: 50Hz ±10%
• Power Factor: ≥0.95

Battery

• Battery Voltage: 192V DC
• Battery Type: External Battery Bank
• Charging Current: 1A – 10A (Expandable)
• Charging Time: 4–5 Hours (90–95%)

Output

• Voltage: 220V / 230V / 240V ±1%
• Frequency: 50Hz ±0.1%
• Waveform: Pure Sine Wave
• Power Factor: 0.8 (0.9 Optional)
• THD: ≤1%

Performance

• Efficiency: Up to 94%
• Overload Capacity:
• 125% for 10 minutes
• 150% for 1 minute

Protection

• Overload Protection
• Short Circuit Protection
• Battery Over/Under Voltage Protection
• Over Temperature Protection

Display & Interface

• LCD Display (Voltage, Frequency, Load, Battery)
• LED Indicators
• Communication: RS232, SNMP (Optional), USB, RS485

Environment

• Operating Temperature: 0°C to 50°C
• Noise Level: ≤50 dBA

Applications

• Offices & Corporate Buildings
• Hospitals & Medical Equipment
• Data Centers & IT Systems
• Banks & Financial Institutions
• Industrial Machinery

Why Choose This UPS in Nepal?

• Reliable performance in unstable power conditions
• Long backup with external battery flexibility
• Protection for expensive equipment
• Suitable for generator and solar integration
