The Proteco Ace Kit is a 230v electromechanical swing gate motor system with a linear ram configuration. It is designed for domestic use and can open gates up to 3 meters wide and 400kg in weight. The kit comes with everything you need to install the system yourself, including the motors, control panel, safety sensors, and wiring.

Key Features:

• Electromechanical swing gate motor system

• Linear ram configuration

• Suitable for domestic use

• Can open gates up to 3 meters wide and 400kg in weight.

• Includes everything you need to install the system yourself.

• Easy to install.

• 3-year warranty on motors, 1 year warranty on other components

• Single swing gate

• Maximum 120° inwards opening

• Domestic use, 1 property (40% duty cycle)

• Suitable for metal gates only (powerful motor)

• Suitable for moderate gatepost and pillars (100-300mm)

• 230v standard mains power

• Easy programming (10 seconds automatic mode)

• Irreversible motor (secures the gates)

• Precision engineered with quality material.

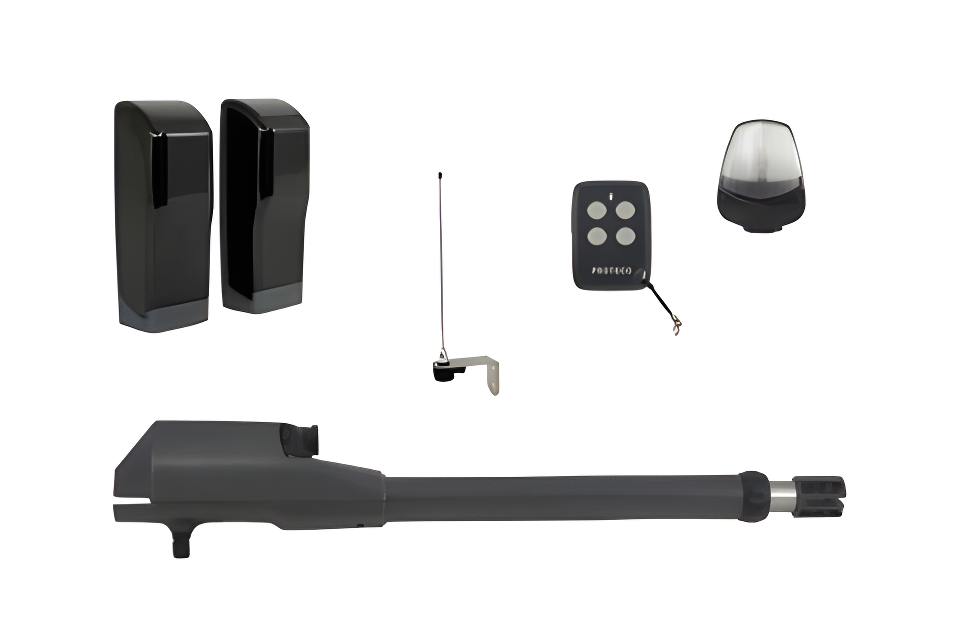

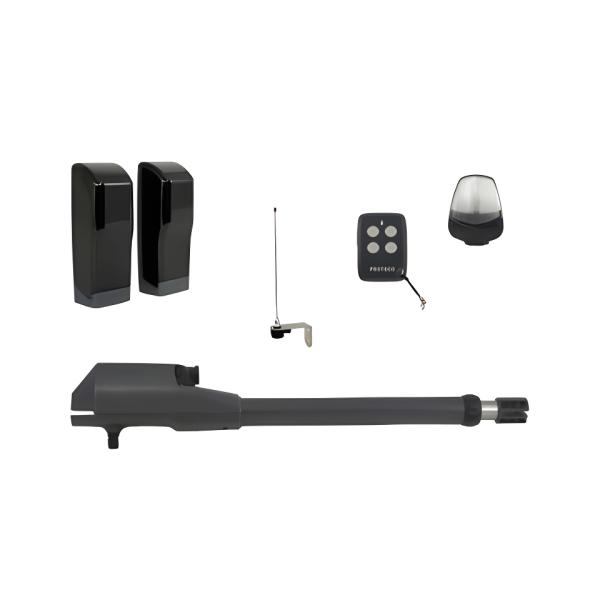

Kit Description

 1 x Ace Ram Operators with fixing brackets

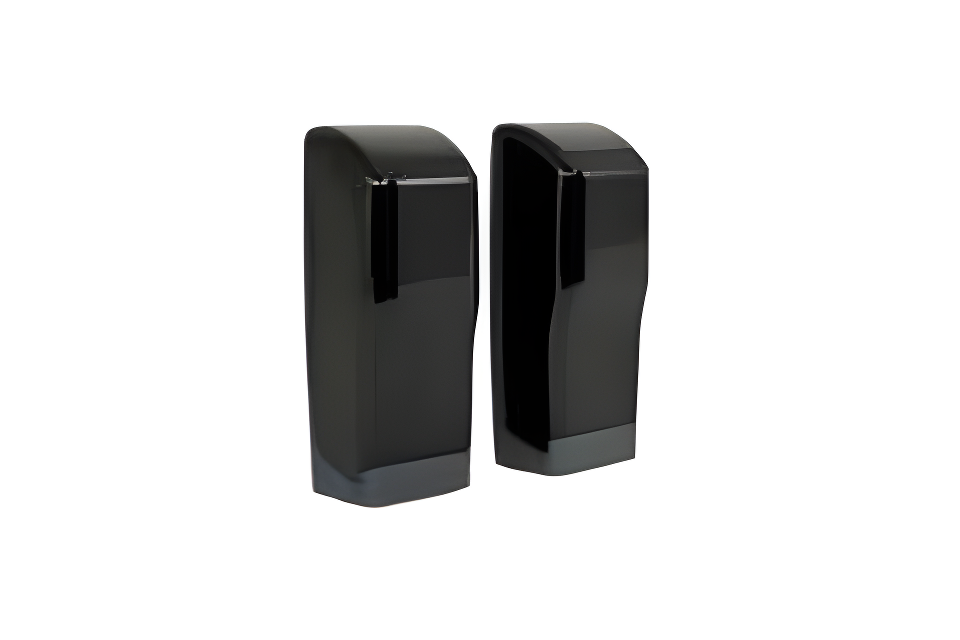

2 x Safety Photocells
1 x Gate Control Unit (PCB)
1 x Key Switch
1 x Remote controller
1 x Override keys for use during power cuts
1 x Safety Blinker Light

Benefits:

• Makes opening and closing your gate easier and more convenient.

• Adds security to your property.

• Can be controlled from a distance.

• Can be programmed to open and close at specific times.

• Increases the value of your property.

Specification

Product Type:      Kit, Single Gate

Gate Type:          Single Swing Gate

Motor Type:         Ram (Linear Arm)

Voltage:   230v Handed       Ambidextrous

Weight:           400kg

Length:           3.00m

Angle:            120°

Uses & Applications:            Residential (Single Property)

Operation:           Swing – Inward Only

Irreversible Motor:   Yes – Irreversible

Solar / Battery Power:         Incompatible

Motor Thrust:                3000N

Limit Stop Type   Ext. Gate Stops

IP Rating: IP54

Temperature Range:          -20° to +55°

Obstacle Detection: Force Limitation

PCB Programming: Simple

Torque Adjustment: 10 Pre-Sets (Default No. 5)

Receiver:            Fixed (Built-In)

Receiver Range:           30m

Receiver Frequency:           433.92 MHz

Security/Encryption: Rolling Code (16 Million Codes Available)

Gate Speed:                  17″

Installation: The Proteco Ace Kit is designed to be easy to install. The kit comes with comprehensive instructions and all the necessary hardware. If you are not comfortable installing the system yourself, you can hire a professional to do it for you.

Maintenance:

The Proteco Ace Kit requires minimal maintenance. It is important to keep the motor and control panel clean and free of debris. You should also check the system regularly for any signs of wear and tear.

Safety:

The Proteco Ace Kit is equipped with a number of safety features, including safety sensors that stop the gate if it encounters an obstacle. It is also important to keep the gate area clear of children and pets.

Overall:

The Proteco Ace Kit is a well-designed and easy-to-install swing gate motor system. It is a great option for homeowners who want to add convenience and security to their property.
