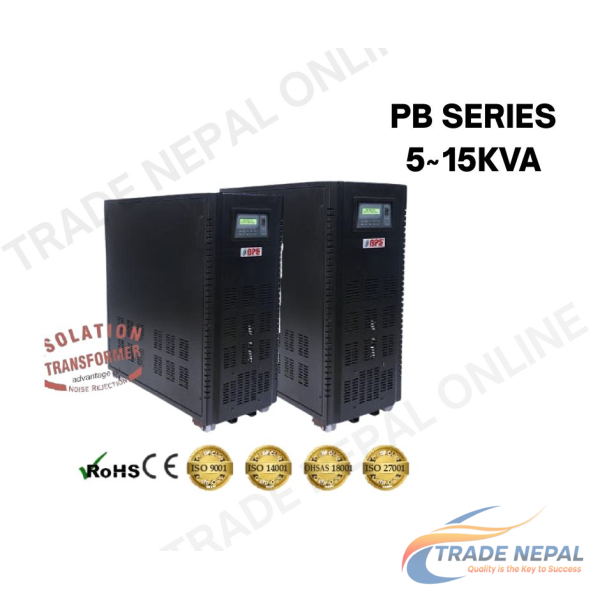

6 KVA OnLine UPS 247PWR 1:1 Phase/192V with Isolation Transformer (PB11106L16)

Description:

The PB11106L16 6KVA Online UPS 247PWRis a high-performance power backup solution designed for critical applications in Nepal. Built with advanced IGBT-based inverter technology and a true online double conversion system, this UPS ensures clean, stable, and uninterrupted power supply for sensitive equipment.

With an inbuilt isolation transformer, the PB11106L16 provides superior protection against electrical noise, voltage fluctuations, and power disturbances—making it ideal for offices, IT systems, medical equipment, and industrial loads.

Its wide input voltage range, intelligent battery management, and user-friendly LCD display make it a reliable and efficient solution for continuous operation.

Features:

• True Online Double Conversion Technology
• Inbuilt Isolation Transformer for complete protection
• Wide Input Voltage Range (160V–280V AC)
• Pure Sine Wave Output for sensitive devices
• High Efficiency up to 93%
• Advanced IGBT-based charger
• Smart Battery Management System
• Cold Start Function (Start UPS without mains power)
• LCD Display for real-time monitoring
• Strong overload and short circuit protection
• Generator compatible
• Optional Solar Compatibility
• Static Bypass (Optional)

Specifications:

Capacity: 8KVA

Input:

• Voltage Range: 160V – 280V AC (Single Phase)
• Frequency: 50Hz ±10%

Output:

• Voltage: 220V / 230V / 240V ±1%
• Frequency: 50Hz ±0.1%
• Power Factor: 0.8 (Standard), 0.9 (Optional)
• Waveform: Pure Sine Wave
• THDv: ≤1%
• Efficiency: Up to 93%

Overload Capacity:

• 110–125% for 10 minutes
• 125–150% for 60 seconds

• 150% for 1 second

Battery:

• Battery Voltage: 192V DC
• Charging Current: 1A – 10A
• Charging Time: depending on battery
• Backup Time: 2–10 hours (depending on battery bank)

System Features:

• LCD Display: Input/Output Voltage, Frequency, Load %, Battery %
• LED Indicators: Mains, AC Mode, DC Mode, Low Battery, Overload
• Protection: Overload, Short Circuit, Battery Low/High Voltage

Environment:

• Operating Temperature: 0°C to 50°C
• Humidity: 0–95% (Non-condensing)
• Noise Level: ≤45dB

Applications:

• Offices and Commercial Buildings
• Data Centers and IT Equipment
• Hospitals and Medical Devices
• Banks and Financial Institutions
• Industrial Equipment
• Networking and Telecom Systems
